Installing Walls & Windows (8.1)

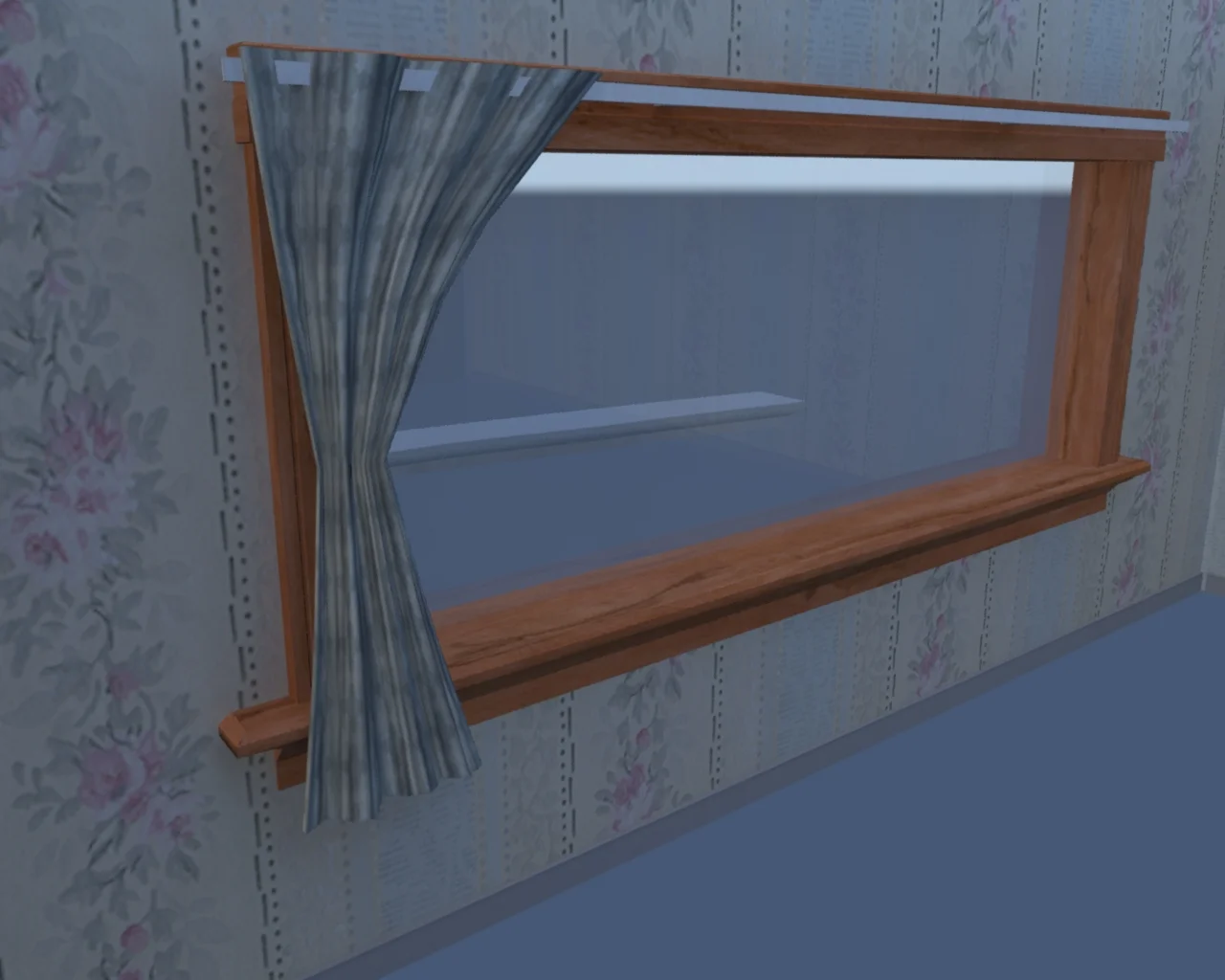

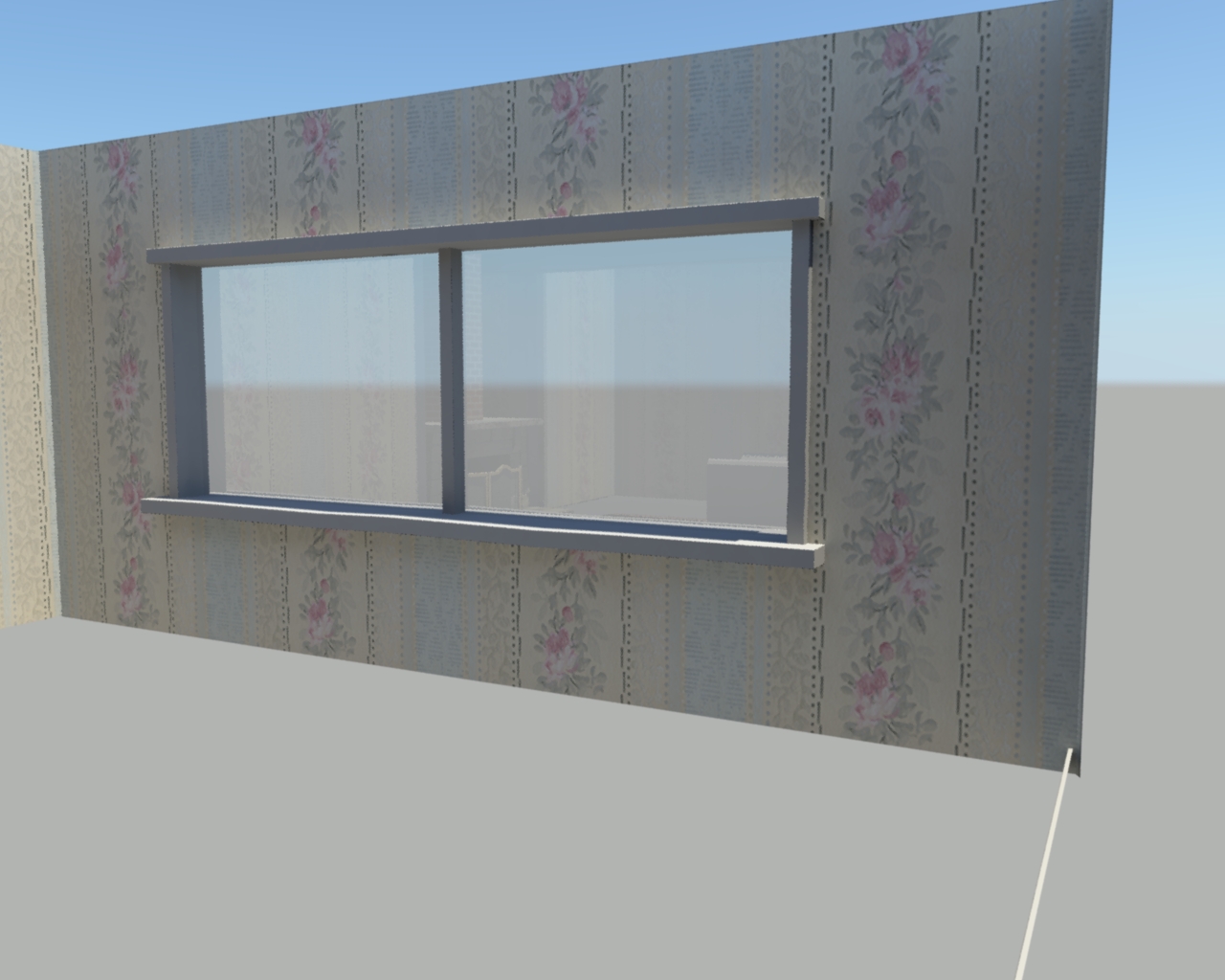

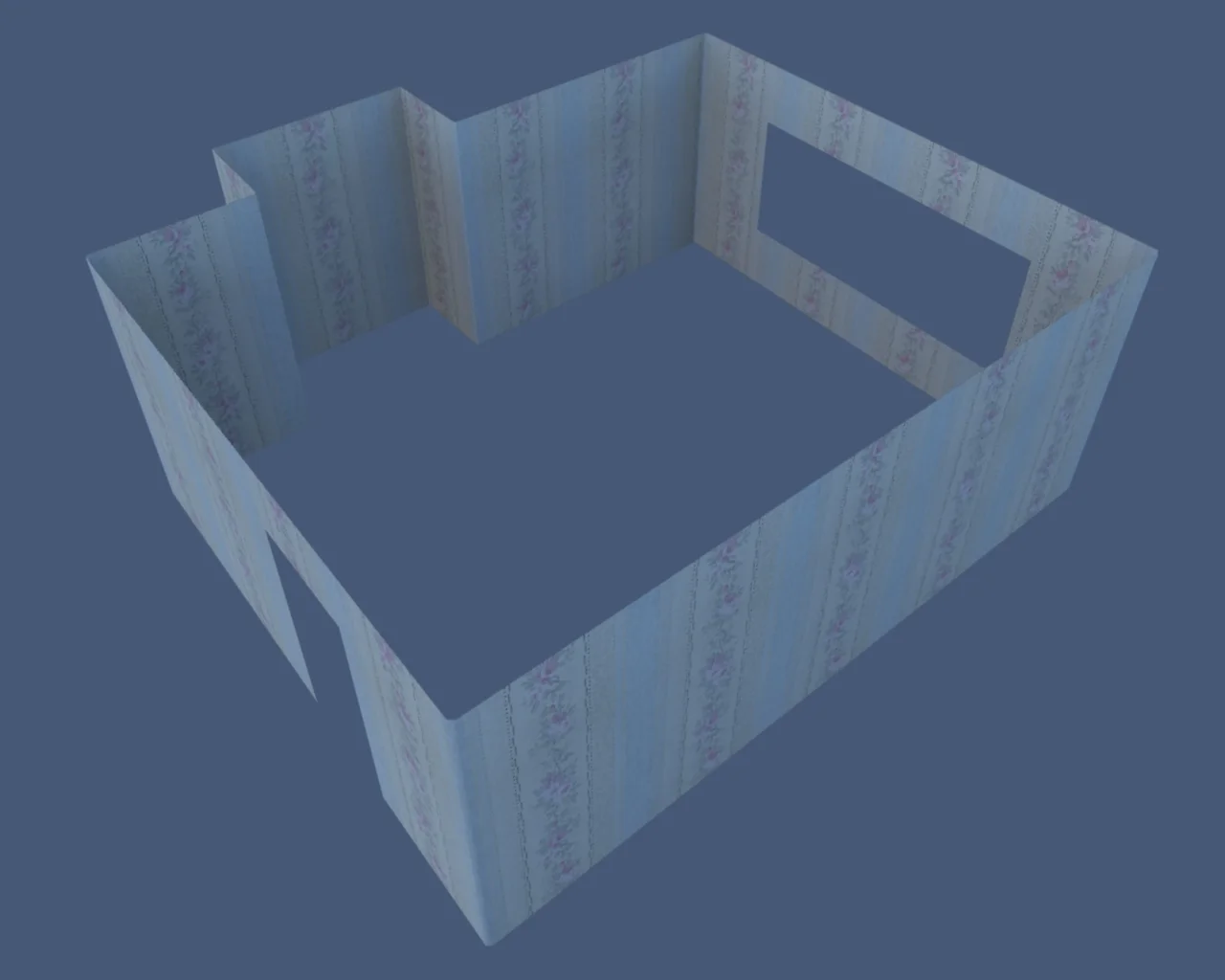

After reworking the shape of the room from the previous prototype, I decided it was about time to add some windows for a more 'natural' and less 'jail cell' look. To begin, I cut a large hole in the wall, then built a placeholder mantel and frame to gauge how the final window might look.

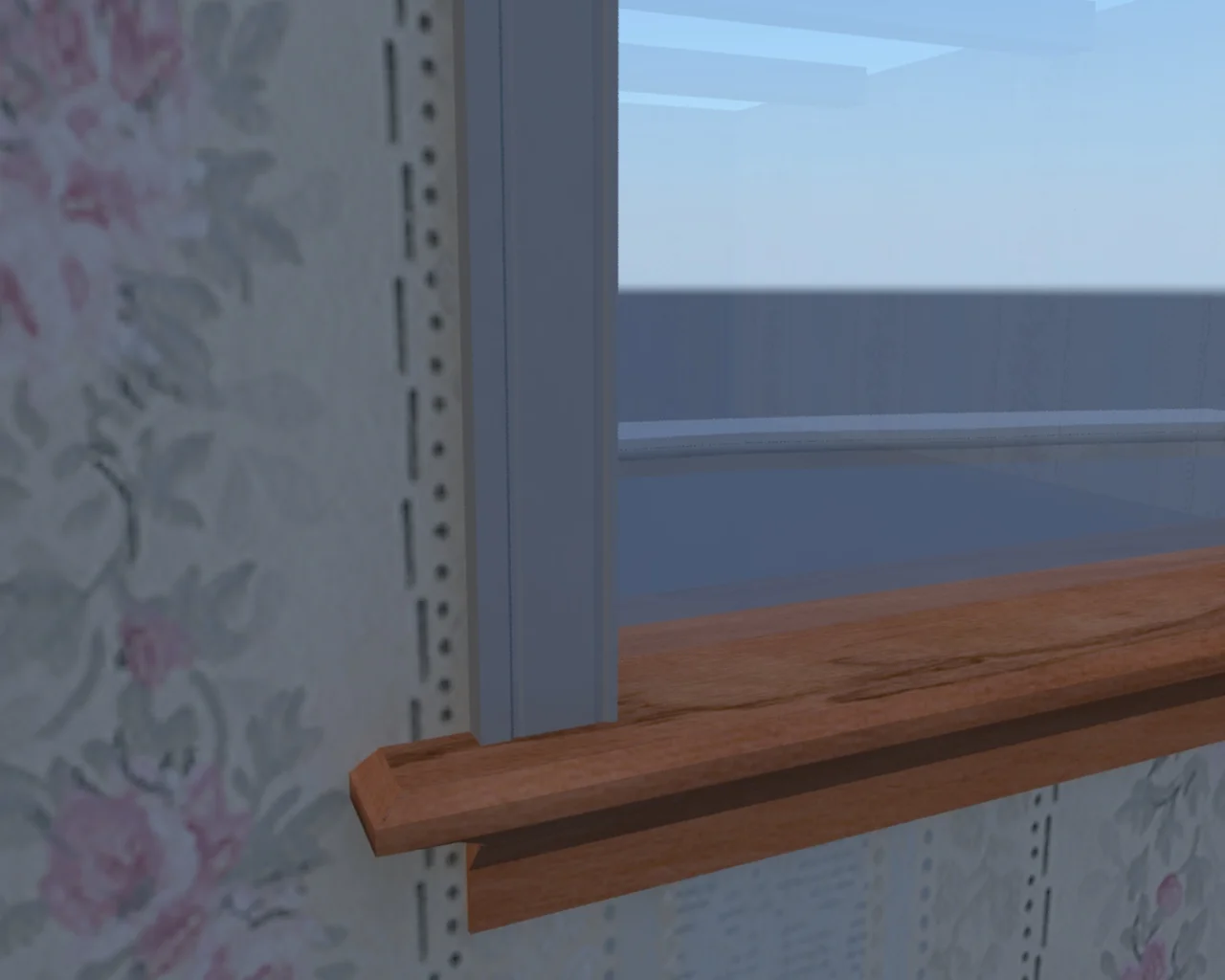

Once the placeholders are created, I rebuild each piece in greater detail. Once all of the pieces are reworked, I will UV all of the pieces, then create all of the textures. In the case of the windowsill to keep consistency in textures I prefer to batch texture as it keeps the techniques I use fresh in my mind.  I decided that the next stage in modelling my window would be to create the curtains. The curtains were built from a poly-plane which I positioned to create rough material folds then extruded the plane back to give the curtain some depth.

To shape the curtain in a more natural position I used the Lattice Deformer tool to retain the previous fold detail whilst also giving it the appearance of being drawn back.

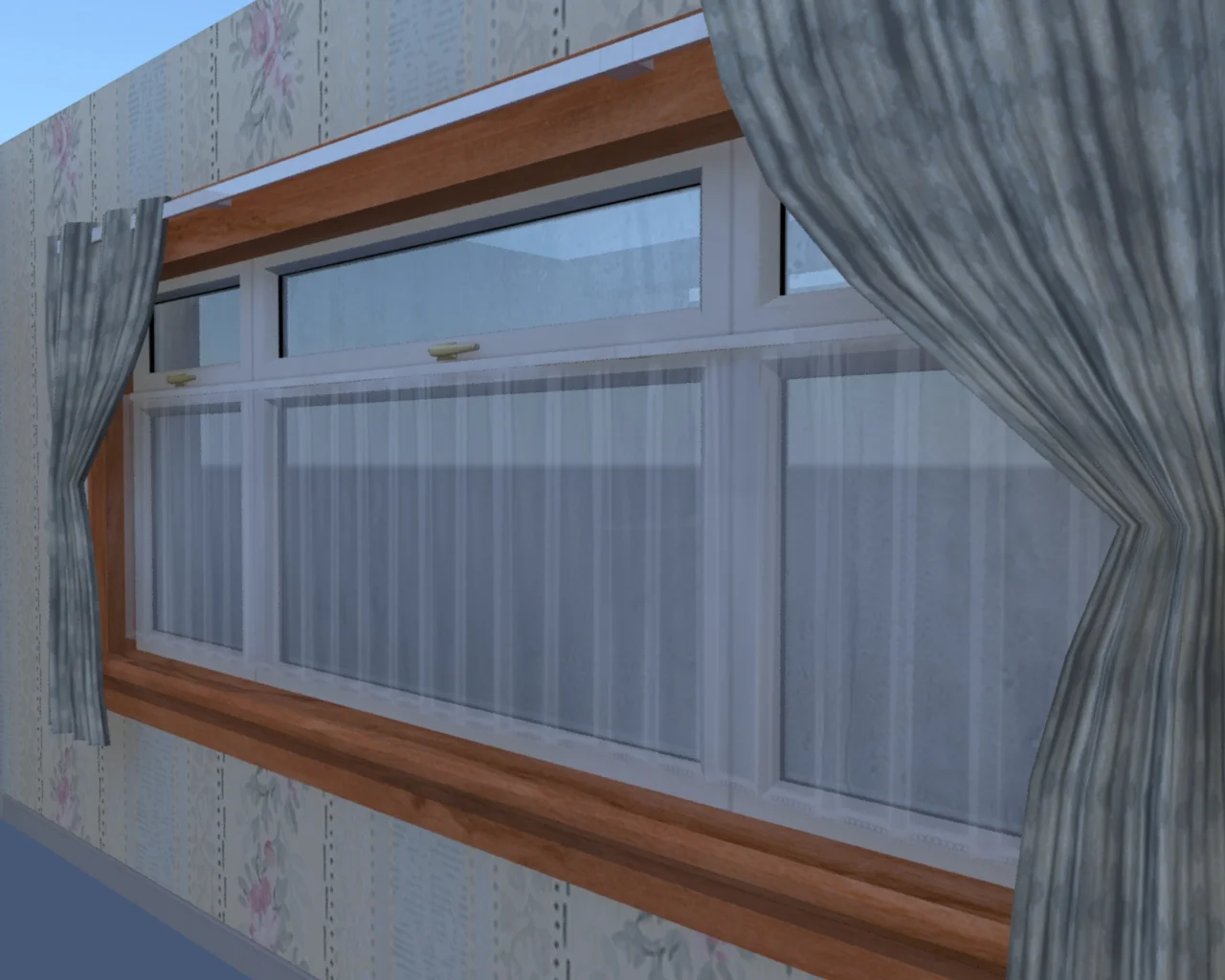

The plastic frame for the window glass was a relatively low poly model. I found that the level of detail of the placeholder model was sufficiently realistic thus didn't require editing further. To create the net-curtain I used a basic plane, created similar folds to the original curtain and applied a semi-opaque texture to it.

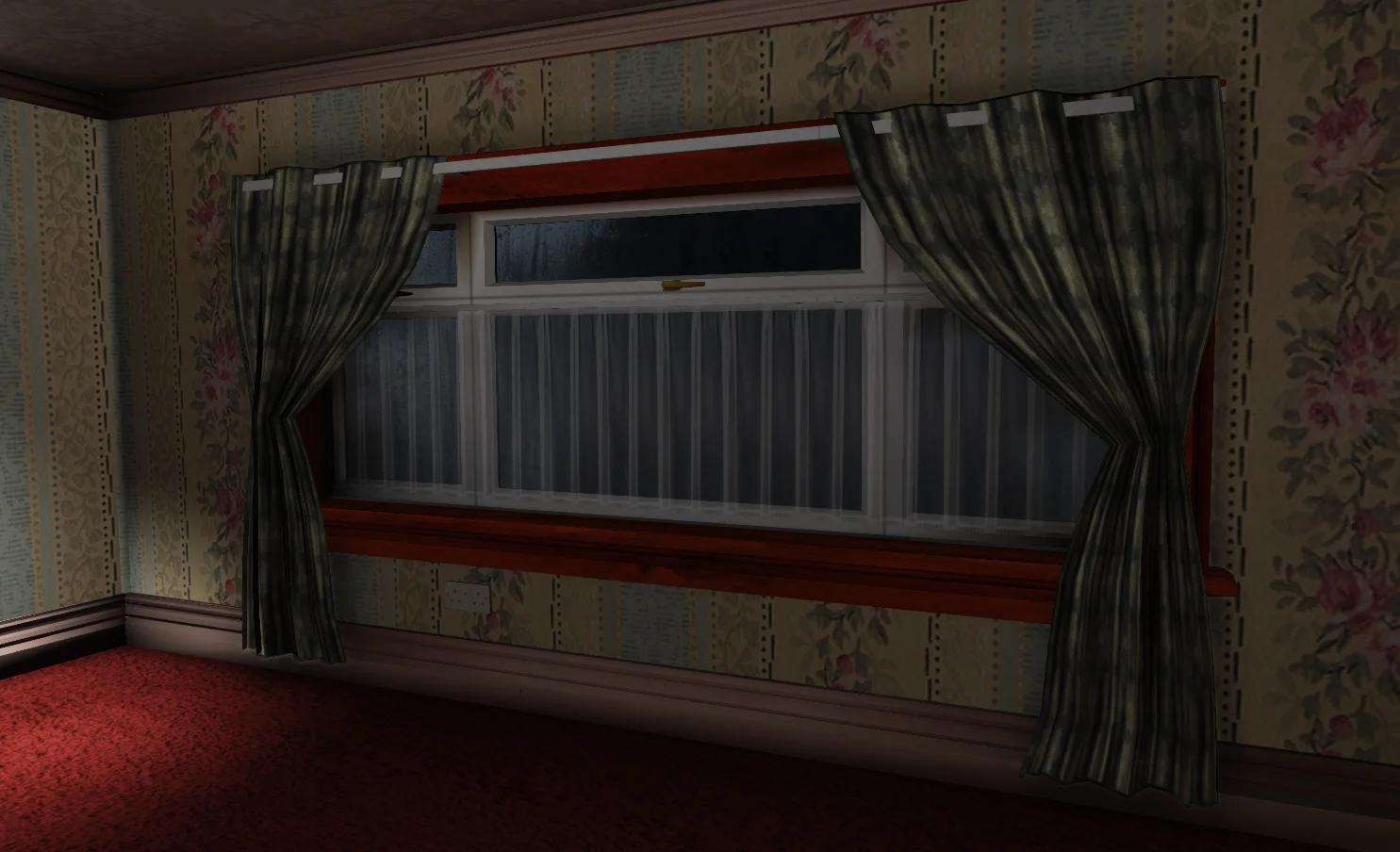

Below is the final image taken from the UDK engine.
